HDMI™ Cable

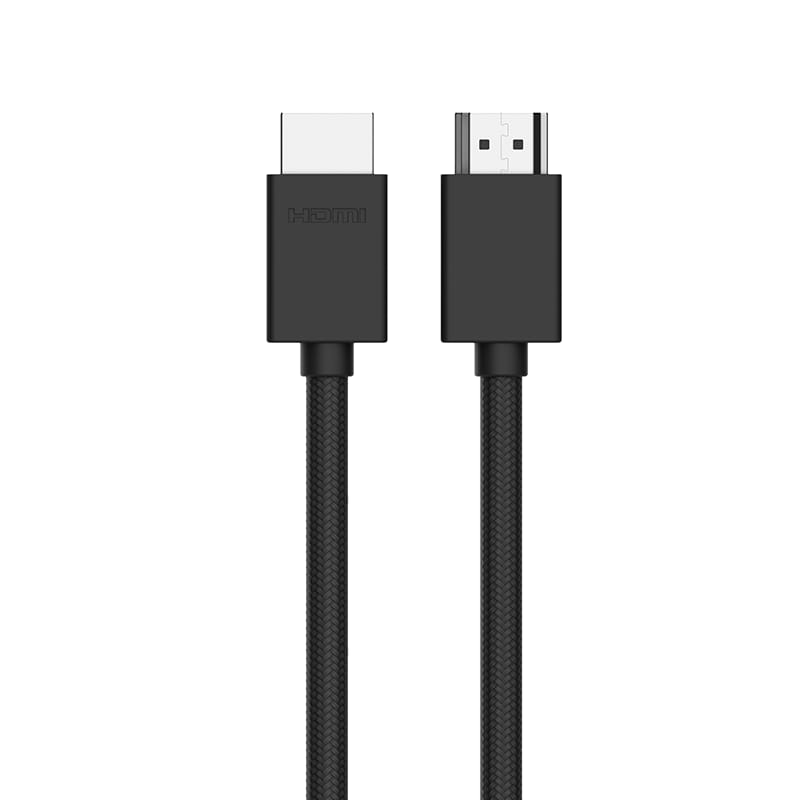

HDMI A 8K Certified Cable - PLT332OG
HDMI 8K ULTRA certified cable with nickel-plated connectors, 60-strand PP nylon braided jacket, 30AWG OFC and 48Gbps for 8K@60Hz, eARC and HDR.
Overview
The PLT332OG is an HDMI 8K Association ULTRA certified cable with a nickel-plated HDMI connector and a molded housing. Its shielding layer uses 144 aluminum wires for isolation, reaching up to 90% coverage and complying with the association's EMI -6dB standard. The jacket is woven from 60 strands of PP yarn, making it more durable than a traditional PVC jacket. With 30AWG OFC high-purity oxygen-free copper conductors, it delivers 48Gbps bandwidth and supports 4K@120Hz and 8K@60Hz resolutions, plus HDR and eARC. Each unit ships with one cable.
Specifications
| Spec | Value |
|---|---|
| Model | PLT332OG |
| Cable material | Nylon weaving (60-strand PP yarn) |
| Cable color | Black |
| Shell material | Molded |
| Connector | HDMI, nickel-plated |
| Conductor | 30AWG OFC oxygen-free copper |
| Bandwidth | 48Gbps |
| Max resolution | 8K@60Hz / 4K@120Hz |
| Shielding | 144 aluminum wires, 90% coverage, EMI -6dB |
| Audio | eARC |
| HDR | Supported |
| Certification | HDMI 8K Association ULTRA Certified |
Frequently Asked Questions
- What makes the PLT332OG cable durable?
- The cable uses a 60-strand PP yarn nylon weave jacket instead of traditional PVC, providing superior durability and protection against wear.
- Does this cable support 8K resolution?
- Yes, the PLT332OG is HDMI 8K Association ULTRA certified and supports 8K@60Hz and 4K@120Hz resolutions with 48Gbps bandwidth.
- What certifications does the PLT332OG carry?
- The cable holds HDMI 8K Association ULTRA certification and meets EMI -6dB shielding standards with 144 aluminum wires at 90% coverage.
- What conductor type is used in this cable?
- The PLT332OG uses 30AWG OFC (oxygen-free copper) conductors for optimal signal transmission and reliability.
- Does it support audio and HDR features?
- Yes, the cable supports eARC audio and HDR, making it fully compatible with modern HDMI 2.1 devices.
